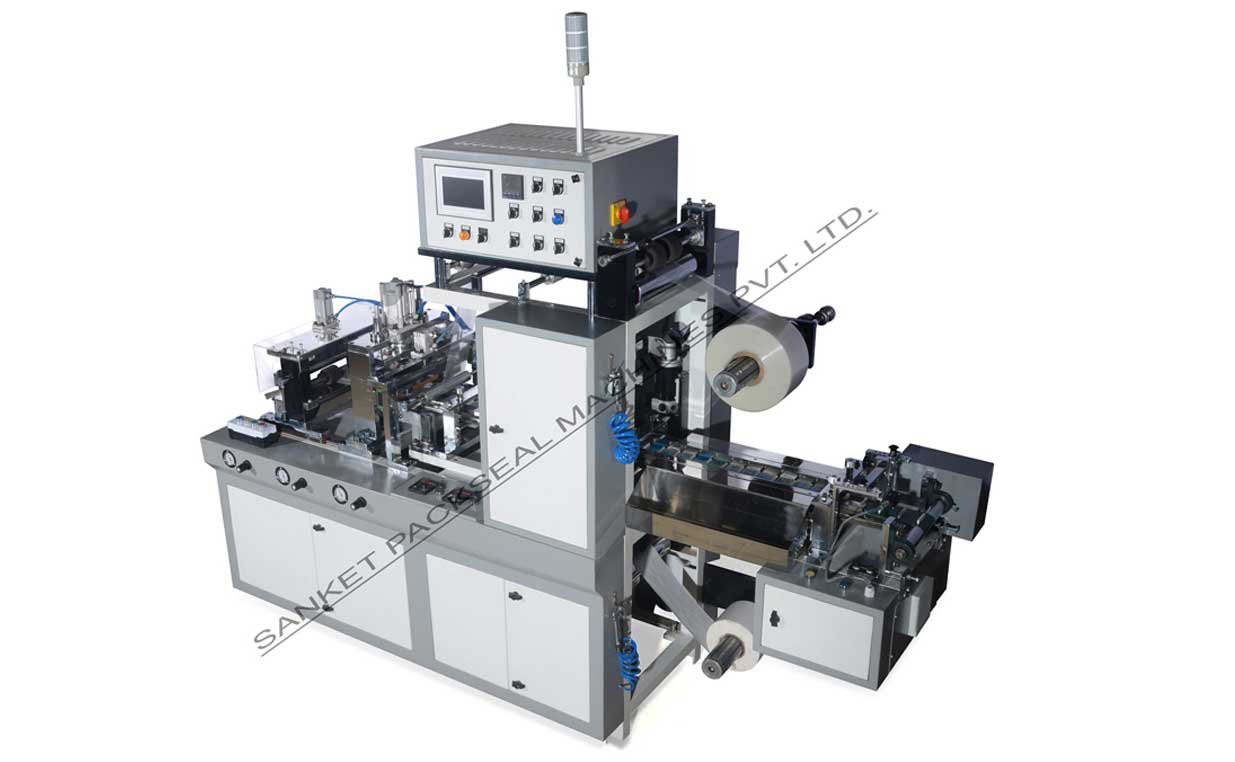

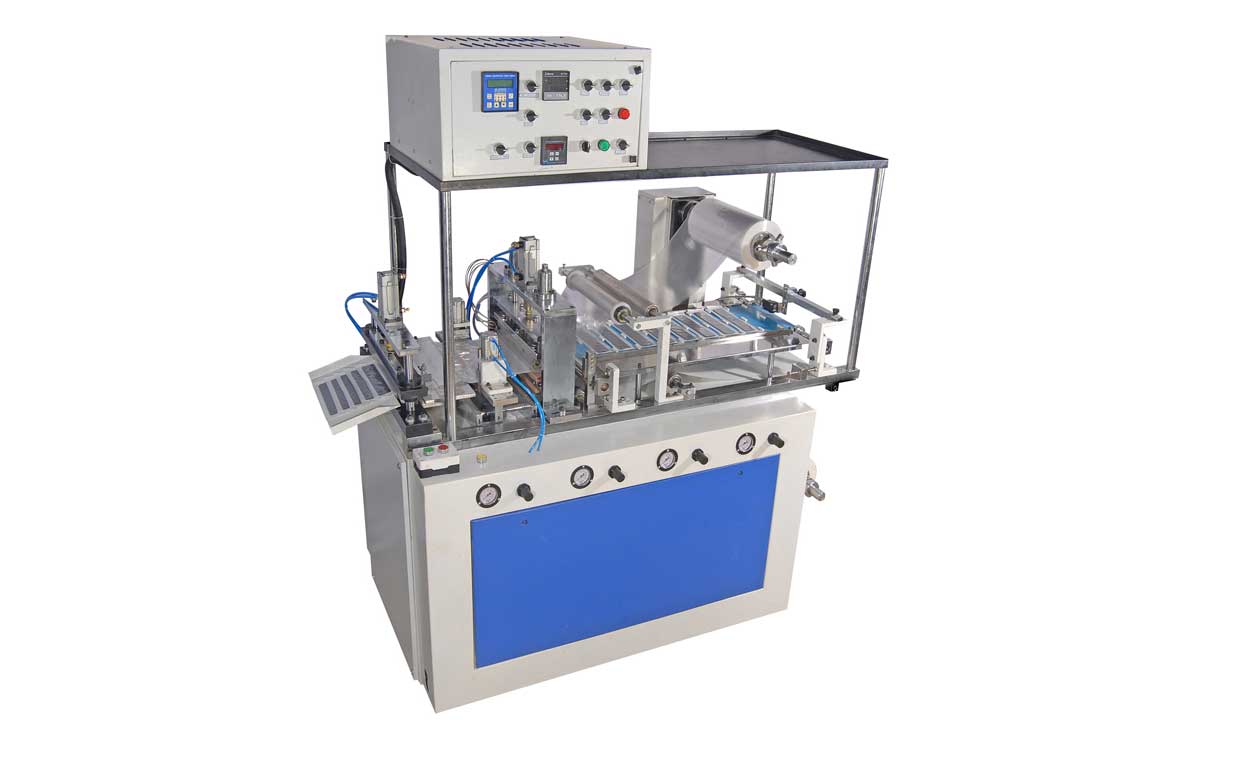

Surgical Suture (Outer) Packing Machine

Surgical Suture (Outer) Packing Machine



Get A Free Quote Contact Us Download Catalogue

TECHNICAL SPECIFICATION
SUTURE PACKING MACHINE-OUTER


TECHNICAL SPECIFICATION
SUTURE PACKING MACHINE-OUTER
1.NUMBER OF STATION (SEALING) ONE
2. NUMBER OF STATION(PUNCH) ONE * VERTICAL
3. MINIMUM WEB WIDTH 80 MM
4. MAXIMUMM WEB WIDTH 160 MM
5. MACHINE LENGTH 1650 MM (APROX)
6. MACHINE WIDTH 750 MM
7. MACHINE HEIGTH 1650 MM
8. MAXIMUM MACHINE SEEPD 25-40 PCS/MIN.
11. MAIN DRIVE ONE COMMON MOTOR
12. UNWIND DRIVE SYNCHRONISED TO MAIN DRIVE
13. CUTTING FUNCTION * PNEUMATIC*
14. SEALER FUNCTION PNEUMATIC SYSTEM
15. MACHINE COLOR SWAN WHITE & VIP BLUE
16. WEIGTH OF MACHINE 800 KGS. (APROX)
17. SYNCRONOCY MOTOR PANASONIC OR SRIJAN
18. UNWIND MOTOR 0.25 HP. (02 NOS.)
19. ELECTRICAL LOAD 3.5 KW.
[ * ] Optional Attachment
[ We reserved rights to change any Technical Specification without prior notice. The Arrangement of compressor must be ready from your side. The Price dose not include the compressor cost.]

Features


  • Precise sealing for peal off
  • Conveyor feed
  • Easy operation
  • High speed servo driven
  • Double web top-bottom registration *
  • High performance advance PLC control
  • Touch screen interface for easy operation
  • Web aligner system *
  • Automatic tension control for unwinding side
