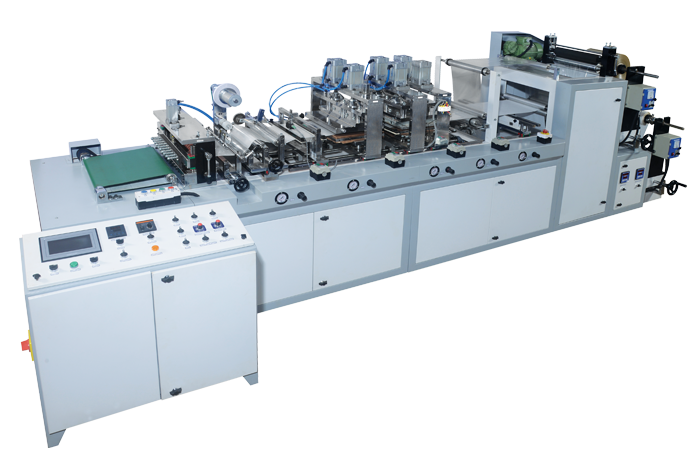

Surgical Pouch Machine
Surgical Pouch Machine
Get A Free Quote Contact Us Download Catalogue
TECHNICAL SPECIFICATION - SURGICAL POUCH MACHINE-TYVAC
| NUMBER OF STATION [ CUTTING ] | ONE | |
| NUMBER OF STATION [SEALING] | TWO [SIDE SEALING] | |
| NUMBER OF STATION [PUNCHING]* | ONE- FOR THUMB NAIL* |
|
| NUMBER OF UNWINDER [FOR ROLL] | TWO- FOR ROLL MOUNTING | |
| NUMBER OF STATION [SEALING] | ONE [BOTTOM] | |
| MINIMUM ROLL WIDTH | 50MM | |
| MAXIMUM ROLL WIDTH | 400 mm | |
| MACHINE LENGTH | 3500 MM | |
| MACHINE WIDTH | 990 MM | |
| MACHINE HEIGHT | 1870 MM | |
| MAXIMUM MACHINE SPEED | 30-80 POUCHES/MIN | |
| MAIN DRIVE | SERVO DRIVEN | |
| UNWIND DRIVE | SYNCHRONISED TO MAIN DRIVE | |
| SEALER & PUNCHING FUNCTION | PNEUMATIC | |
| CUTTER FUNCTION | PNEUMATIC | |
| MACHINE COLOR | VIP BLUE & SWAN WHITE | |
| WEIGHT OF MACHINE | 850 KGS [APPROX] | |
| SERVO MOTOR | 7.15 NM | |
| UNWIND MOTOR | 0.5 H.P. 02 NOS. | |
| HEATING LOAD | 4.0K.W. [6 KW for Double *] | |
| [ * ] Optional Attachment |
||
Features
- Three side seal system
- Double web system
- Hole punch system *
- High speed servo driven
- Precise sealing for peal off
- Self Seal Pouch Attachment *
- High performance advance PLC control
- Double web top-bottom registration *
- Touch screen interface for easy operation
- Automatic tension control for unwinding side *
- Automatize station moving system *
- Variable sealing area
- Multi-ups pouch *
- Perforation system *
- Gusset system *
- Web aligner system *
