Surgical Suture ( Inner Folder )
Packing Machine

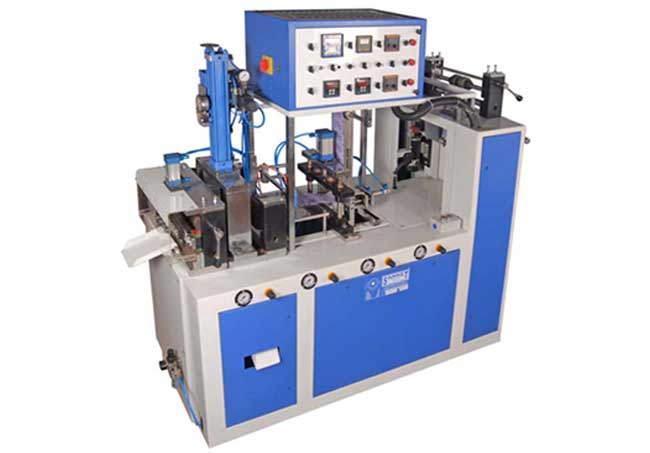

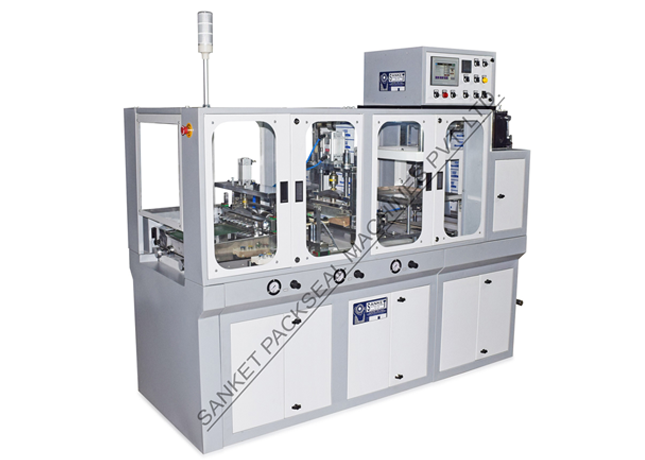

Surgical Suture ( Inner Folder ) Packing Machine



Get A Free Quote Contact Us Download Catalogue

TECHNICAL SPECIFICATION
SURGICAL SUTURE (INNER FOLDER) PACKING MACHINE


1. NUMBER OF STATION (SEALING) ONE
2. NUMBER OF STATION(PUNCH) ONE * VERTICAL
3. MINIMUM WEB WIDTH 80 MM
4. MAXIMUMM WEB WIDTH 160 MM
5. MACHINE LENGTH 1650 MM (APROX)
6. MACHINE WIDTH 750 MM
7. MACHINE HEIGTH 1650 MM
8. MINIMUM SUTUR FOLDER 3/8”
9. MAXIMUM SUTUR FOLDER 1 ½”
10. MAXIMUM MACHINE SEEPD 25-40 PCS/MIN
11. MAIN DRIVE ONE COMMON MOTOR
12. UNWIND DRIVE SYNCHRONISED TO MAIN DRIVE
13. PUNCHING FUNCTION HYDROPNEUMATIC
14. SEALER FUNCTION PNEUMATIC SYSTEM
15. MACHINE COLOR SWAN WHITE & VIP BLUE
16. WEIGTH OF MACHINE 800 KGS. (APROX)
17. SYNCRONOCY MOTOR PANASONIC
18. UNWIND MOTOR 0.25 HP. (02 NOS.)
19. ELECTRICAL LOAD 3.5 KW.
[ * ] Optional Attachment

[ We reserved rights to change any Technical Specification without prior notice.
The Arrangement of compressor must be ready from your side. The Price dose not include the compressor cost.]

Features


  • Precise sealing for peal off
  • Pusher system for hand-free operation
  • Vriable sizes can be done *
  • High speed servo driven
  • Double web top-bottom registration *
  • High performance advance PLC control
  • Touch screen interface for easy operation
  • Web aligner system *
  • Automatic tension control for unwinding side
