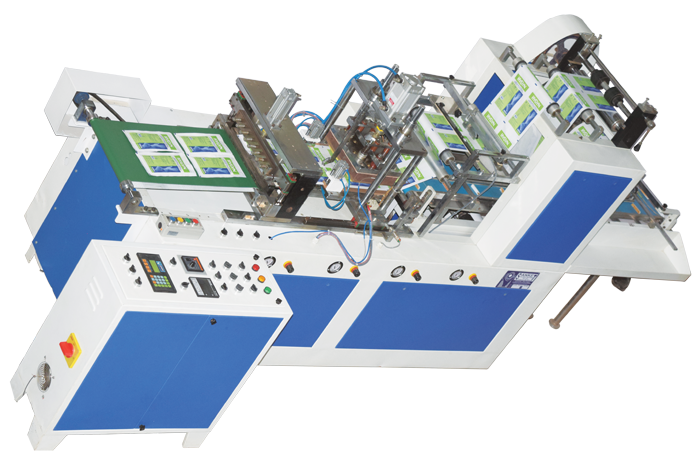

Surgical Gloves Packing Machine
Surgical Gloves Packing Machine
Get A Free Quote Contact Us Download Catalogue
TECHNICAL SPECIFICATION
SURGICAL GLOVES PACKING MACHINE
| NUMBER OF STATION [ CUTTING ] | ONE |
| NUMBER OF STATION [SEALING] | ONE |
| NUMBER OF STATION [ PRESSING] | INBUILT WITH SEALING |
| NUMBER OF UNWINDER [FOR ROLL] | TWO- FOR ROLL MOUNTING |
| NUMBER OF CONVEYOR TRACK | SINGLE TRACK |
| MINIMUM ROLL WIDTH | 120 MM |
| MAXIMUM ROLL WIDTH | 260 MM |
| MACHINE LENGTH | 4550 MM [APROX] |
| MACHINE WIDTH | 990 MM [APROX] |
| MACHINE HEIGHT | 1870 MM [APROX] |
| MAXIMUM MACHINE SPEED | 25-35 PKTS/MIN. |
| MAIN DRIVE | SERVO DRIVEN |
| UNWIND DRIVE | SYNCHRONISED TO MAIN DRIVE |
| SEALER & PRESSING FUNCTION | PNEUMATIC |
| CUTTER FUNCTION | PNEUMATIC |
| MACHINE COLOR | VIP BLUE & SWAN WHITE |
| WEIGHT OF MACHINE | 850 KGS [APPROX] |
| SERVO MOTOR | 7.15 NM |
| UNWIND MOTOR | 0.5 H.P. [02 NOS.] |
| ELECTRICAL LOAD | 6.8 KW.[APROX] |
| [ * ] Optional Attachment | ON LINE PRINTING FOR BATCH/ PKD/ PROD CODE. |
Features
- Precise die sealing
- Conveyor feed
- Easy operation
- Robust design and cost effective
- High speed servo design
- Combined dressing can be packed
- Batch coding attachment *
- Double web top-bottom registration *
- Double-up packing *
- Touch screen interface for easy operation
- High performance advance PLC control
- Web aligner system *
- Automatic tension control for unwinding side
